Article: An Introduction to Indoor Radio Propagation
Posted Original 12/10/98; edited 1/6/01

1.0 INTRODUCTION:

Indoor use of wireless systems poses one of the biggest design challenges, as indoor radio (RF) propagation is essentially a Black Art. This technical note will try to shed some light on this mysterious subject and will seek to quantify or set boundaries for use of wireless systems inside typical buildings at 900 MHz and 2.4 GHz.


1.1 BASIC RADIO PROPAGATION:

The most basic model of radio wave propagation involves so called "free space" radio wave propagation. In this model, radio waves emanate from a point source of radio energy, traveling in all directions in a straight line, filling the entire spherical volume of space with radio energy that varies in strength with a 1/(range)^2 rule (or 20 dB per decade increase in range).

Real world radio propagation rarely follows this simple model. The three basic mechanisms of radio propagation are attributed to reflection, diffraction and scattering. All three of these phenomenon cause radio signal distortions and give rise to signal fades, as well as additional signal propagation losses. Outdoors, with mobile units, movements over very small distances give rise to signal strength fluctuations, because the composite signal is made up of a number of components from the various sources of reflections (called "multipath signals") from different directions as well as scattered and / or diffracted signal components. These signal strength variations amount to as much as 30 to 40 dB in frequency ranges useful for mobile communications and account for some of the difficulty presented to the designer of reliable radio communications systems. The basic signal attenuation with range noticed in the real world gives rise to what are termed "large scale" effects, while the signal strength fluctuations with motion are termed "small scale" effects.

Indoors the situation is even worse. It is very difficult to design an "RF friendly" building that is free from multipath reflections, diffraction around sharp corners or scattering from wall, ceiling, or floor surfaces (let alone operate perfectly in a randomly chosen building location). The closest one could probably get to an "RF friendly" building would be an all wooden or all fiberglass structure -- but even this must have a structurally solid floor of some kind and this more ideal RF building will still have reflections, multipath and other radio propagation disturbances (as the materials properties section below shows) which will prove to be less than ideal. Indoors then, the simple free space model fails to account for the small and large scale fading that is observed in real world radio links as Figure 1 (ref. 1)below readily shows.

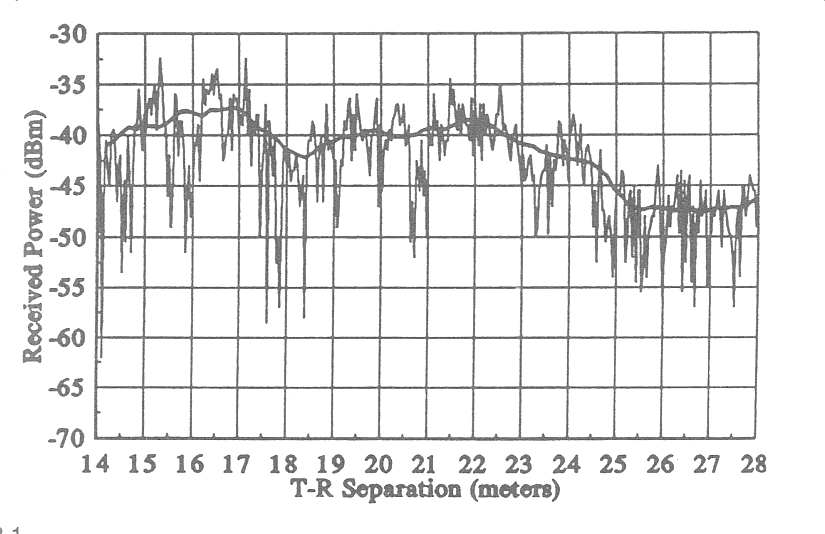

Figure 1 - Received RF Power plot indoors versus range in meters.


Radio wave propagation inside smooth walled metal buildings can be so bad that radio "dead spots" can exist where the signal is virtually non-existent. These dead spots arise because of almost perfect, lossless reflections from smooth metal walls, ceilings or fixtures that interfere with the direct radiated signals. The dead spots exist in 3 dimensional space within the building and motions of only a few inches can move from no signal to full signal. It will be the main purpose of this report to try to recommend solutions for this kind of problem.


1.2 ABOUT MULTIPATH: In the real world, multipath occurs when there is more than one path available for radio signal propagation. The phenomenon of reflection, diffraction and scattering all give rise to additional radio propagation paths beyond the direct optical "line of sight" path between the radio transmitter and receiver. As Theodore S. Rappaport describes the phenomenon in Wireless Communications — Principles and Practice (ref.2):
"Reflection occurs when a propagating electromagnetic wave impinges upon an object which has very large dimensions when compared to the wavelength of the propagating wave. Reflections occur from the surface of the earth and from buildings and walls.

Diffraction occurs when the radio path between the transmitter and receiver is obstructed by a surface that has sharp irregularities (edges). The secondary waves resulting from the obstructing surface are present throughout the space and even behind the obstacle, giving rise to a bending of waves around the obstacle, even when a line-of-sight path does not exist between transmitter and receiver. At high frequencies, diffraction, like reflection, depends on the geometry of the object, as well as the amplitude, phase, and polarization of the incident wave at the point of diffraction.

Scattering occurs when the medium through which the wave travels consists of objects with dimensions that are small compared to the wavelength, and where the number of obstacles per unit volume is large. Scattered waves are produced by rough surfaces, small objects, or by other irregularities in the channel. In practice, foliage, street signs, and lamp posts induce scattering in a mobile communications system."
In practice, not only metallic materials cause reflections, but dielectrics (or electrical insulators) also cause reflections.

The actual signal levels reflected from insulators depends in a very complicated way on the above characteristics as well as the geometry of the situation. Suffice it to say, that insulators are not as good at reflecting radio signals as metal surfaces, but even common insulating materials do cause some reflection of radio waves. Multipath occurs when all the radio propagation effects combine in a real world environment. In other words, when multiple signal propagation paths exist, caused by whatever phenomenon, the actual received signal level is vector sum of all the signals incident from any direction or angle of arrival. Some signals will aid the direct path, while other signals will subtract (or tend to vector cancel) from the direct signal path. The total composite phenomenon is thus called multipath. Two kinds of multipath exist: specular multipath -- arising from discrete, coherent reflections from smooth metal surfaces; and diffuse multipath -- arising from diffuse scatterers and sources of diffraction (the visible glint of sunlight off a choppy sea is an example of diffuse multipath).

Both forms of multipath are bad for radio communications. Diffuse multipath provides a sort of background "noise" level of interference, while specular multipath can actually cause complete signal outages and radio "dead spots" within a building. This problem is especially difficult in underground passageways, tunnels, stairwells and small enclosed rooms. The proper functioning of the radio communication link requires that multipath be minimized or eliminated.


2.0 MITIGATING MULTIPATH PROBLEMS:

RF multipath problems can be mitigated in a number of ways:
  1. Radio system design

  2. Antenna system design

  3. Signal / waveform design

  4. Building / environment design
Many wireless systems demand "robust" and error free radio communications, since the overall system fails if the radio system fails. The major features that each subsystem design will have are outlined below:
  1. Radio system design — redundant paths for each receiver, if at all possible

  2. Antenna system design — dual diversity antennas used at each receiver, as a minimum

  3. Signal / waveform design — Spread Spectrum radio design with the highest feasible chip rate

  4. Building / environment design — not much can be done in this area, unless new "RF Friendly" buildings are constructed

3.0 INDOOR RF PROPAGATION:

RF propagation obstacles can be termed hard partitions if they are part of the physical / structural components of a building. On the other hand, obstacles formed by the office furniture and fixed or movable / portable structures that do not extend to a buildings ceiling are considered soft partitions. Radio signals effectively penetrate both kinds of obstacles or partitions in ways that are very hard to predict.

Remember that in free space, an additional signal loss of 20 dB is incurred for each 10 to 1 increase in radio range. Thus, an obstacle with a measured loss of 20 dB or more from its materials is a significant loss! The equivalent of RF transparent is probably in the range of 3 to 6 dB loss from any obstacle's material properties.

We cannot do anything about the buildings, building materials or structures this system will be used in, however, we must still explore the realm of overall macroscopic signal propagation in a typical building. Electronic engineers (radio engineers, in particular) would like to be able to predict the signal levels and range of signal losses present in a building. To enable this prediction a number of studies and measurements have been made which grossly characterize in building signal propagation. Figure 2 (ref. 2), below, shows scatter plots of radio path loss as a function of distance in a typical office building for propagation through one through four floors. Figure 3 (ref. 3), below, shows measurements made at another "typical" building. Observe that both sets of data were taken at 914 MHz, not 2400 MHz and that data is shown for propagation on the same floor as well as between floors.

We can extrapolate this data for use at 2400 MHz with a fair amount of certainty, if we add a few dB (perhaps 5 to 6 dB) to account for the higher frequency we will use to each graph point.

Interpretation of this data provides a level of understanding of the potential problem at hand. Figure 2 shows losses ranging from about 50 dB to over 80 dB for a transmitter-receiver separation of only 10 meters. Figure 3 shows even higher losses, extrapolating to our frequency range gives us over 50 dB to over 90 dB attenuation in a 10 meter separation!

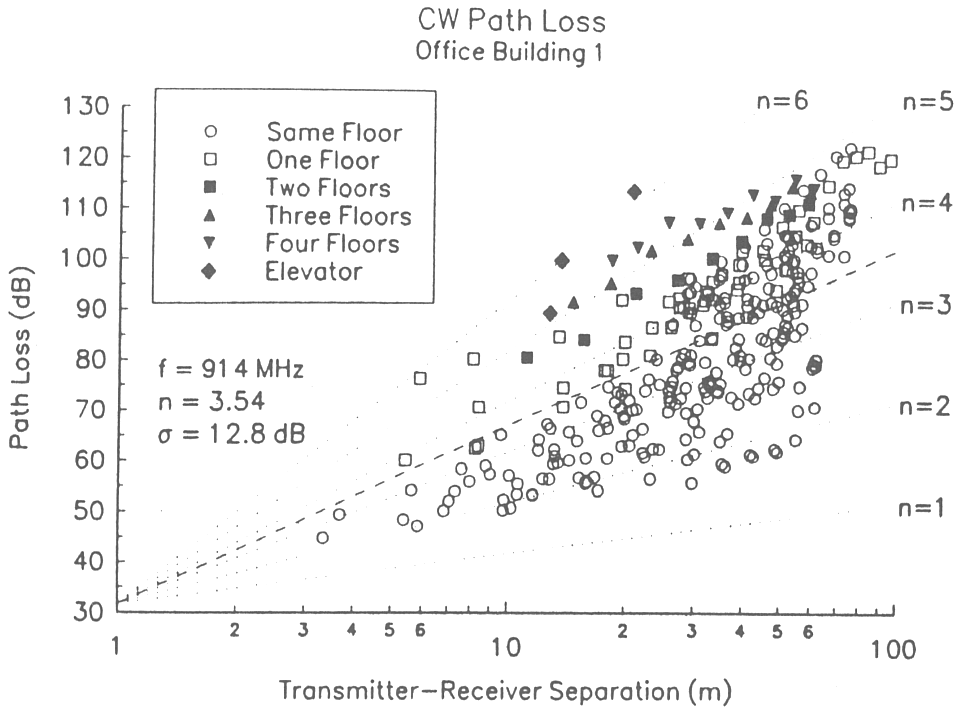

Figure 2 - Path Loss Scatter Plot in a Typical Building.

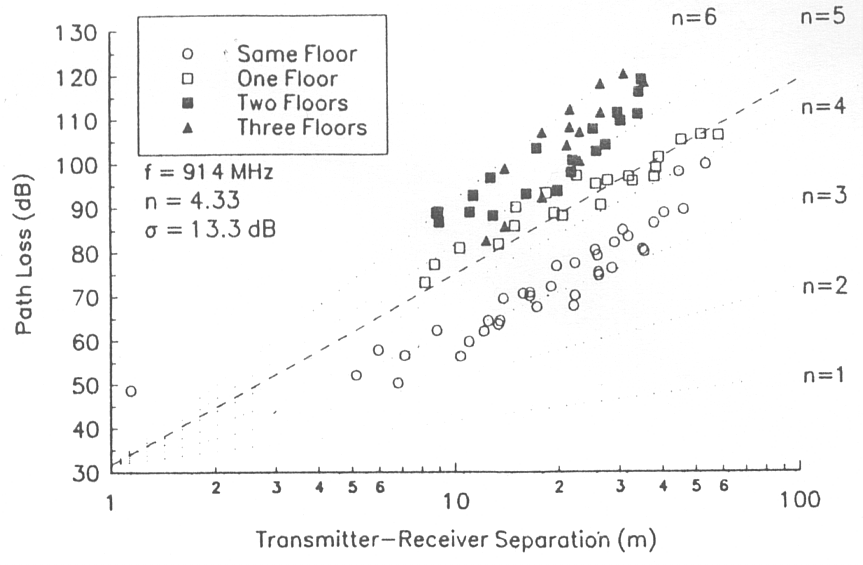

Figure 3 - Path Loss Scatter Plot in Another Typical Building.


Given that the entire loss budget for the typical indoor wireless link is in the neighborhood of 120 dB, most of our losses seem to be expected in the very first 10 meters! However, this interpretation of the data presented in Figures 2 and 3 takes the entire realm of multi-story building propagation into account. This is perhaps not fair in the current context. If we confine ourselves to same floor only propagation, then losses at 10 meters can be expected to be about 60 dB. However, going out to a 50 meter range between transmitter and receiver causes losses as high as 110 dB -- almost all of our loss budget will disappear by 50 meters! So, can we begin to characterize losses between rooms and through the various radio obstacles and hard / soft partitions within a typical building?


4.0 ESTIMATING / PREDICTING INDOOR PROPAGATION LOSS:

Based on the data above, as a first cut approximation to estimating indoor path losses, if we assume that propagation follows an approximate 1/(range^3.5) power rule, rather than 1/(range^2), we can predict propagation losses with the following relationship (at 2.4 GHz):


Path Loss (in dB) = 40 + 35 * [LOG (D in meters)]


Thus a 10 meter path will give a loss of about 75 dB and a 100 meter path gives a path loss of about 110 dB. If the data above are fairly accurate, we can expect a large-scale signal flucuation of about 13 dB (or the estimated path loss will have a variance of about 13 dB).

In the real world then, it is probably optimistic to expect our in-building links to work well beyond about 100 meters!


5.0 CONCLUSIONS:

This report has tried to make some sense out of the mysteries of radio propagation within buildings. We have presented measured data and come up with an approximate formula for the average signal losses to be expected at 2.4 GHz in typical indoor environments.

We have shown that a reasonable range of indoor radio propagation phenomenon can be handled by a practical system at distances out to perhaps 100 meters.


REFERENCES


  1. Rappaport, Theodore S., Wireless Communications - Principles & Practice, IEEE Press, 1996, pp 71.
  2. Rappaport, Theodore S., Wireless Communications - Principles & Practice, IEEE Press, 1996, pp 130.
  3. Rappaport, Theodore S., Wireless Communications - Principles & Practice, IEEE Press, 1996, pp 131
