PTSS-2003 Developer's Kit

Note: Pegasus Technologies is in the process of designing a successor module to the PTSS2003, and we are no longer taking new customers for this product. For more information on the timing and capabilities of the new module, call Jim Pearce at 865-717-9339 ext. 201.

This kit will greatly simplify the job of incorporating the PTSS2003 RF Transceiver Module into your designs. With our easy setup and configuration, in a matter of minutes you can put the 250 mW transmit power of the FCC and Canadian-certified PTSS2003 Transceiver to work for you! And now, production efficiencies and increased volume have enabled us to offer this kit at a lowered price!

Kit Contents

2 PTSS2003 Transceiver Modules
2 PTSS2003TB1 Demo Boards
2 Rubber Flex Antennas
2 RS-232 Serial Cables
6 AAA Alkaline Cells
CD Rom containing:
- Configuration Software
- User's Manual

The self-contained demo boards permit you to plug in the PTSS2003 RF modules and see within minutes how they operate. Each board includes a built-in battery holder with 3 AAA alkaline cells and a switch, which permits free-standing range testing without the need to be tied to a power source. It also includes LED lights to provide visual evidence that signals have been received, and provides built-in serial logic level conversion to and from standard RS-232 interface cables. The modules are pre-configured in power-up test mode, one as a receiver and the other as a transmitter. These configurations and others can be easily changed using the provided software.

When ordering, ask for Part Number PTSS2003DK. Acceptable methods of payment include credit card (US customers only), advance check, money order, or Net-30 terms (with prior approval). To purchase online, go to our RF Sales page.

Let us be your RF experts -- for more information on our consulting services, visit the Pegasus Tech Home Page or call (865) 717-9339.

Solid dark line

The PTSS2003 Developer's Kit ...

Supports the FCC-certified frequency hopping spread spectrum 902 - 928 MHz PTSS2003 RF transceiver module
Enclosed units include switched battery-powered operation and permit direct RS-232 interface
Includes all components necessary to get the units up and running right away
Easy set up and configuration
Detailed documentation and full technical support speeds up the integration process

Solid dark line

System Requirements:
2 IBM-compatible PCs running Windows 98 or later, each with an available serial port and a CDRom drive.

Software:
The CD contains configuration and test modes which allow range test measurements, power management control, data encryption options, hop table selection, and more.

Kit Component	Application
2 PTSS2003 Transceiver Modules	Range testing for your application Mechanical fit testing Data transmission
2 PTSS2003TB1 Demo Boards	Serial logic conversion to/from RS-232 Connection with PTS2003 module LED indicator lights for reception testing Switched battery power for unplugged operation and testing
2 Rubber Flex Antennas	Small, convenient and cost-efficient antennas plug directly into connector on demo board.
2 RS-232 Cables	Connect the Demo Board to the PCs serial port
6 AAA Alkaline Cells	Provide tether-free power for the Demo Board for easy range testing
Configuration Software (on the CDRom)	Setup configuration for range testing, pwer testing, or normal operation Selection of hop table Console version and Windows version Reloading of firmware for updates and custom applications
Detailed documentation (on the CDRom)	User's Manual with complete details of the communications protocol between the PTSS2003 and your system.
Free Software Updates	Access to Pegasus Technologies' Secure Developers' site, with free firmware & documentation updates is included.
Engineering Support	Assistance in your integration effort is included as part of the development kit. Additional engineering support and transceiver hardware/firmware customization can be quoted by Pegasus Technologies.

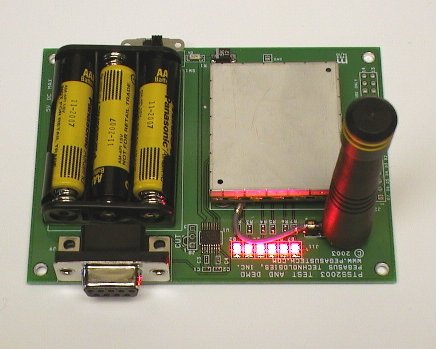

The demo board, with the PTSS2003 plugged in and receiving a signal

For a downloadable/printer friendly copy of this spec sheet, select one of the links below:

For complete details and pricing, please email Pegasus Technologies, or call Jim Pearce at (865) 717-9339.
